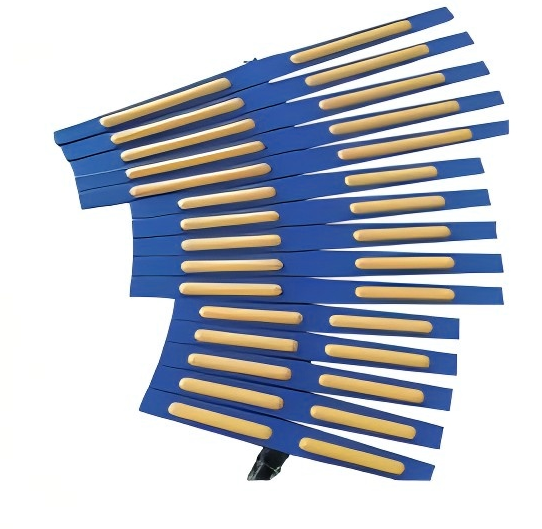

Plate Top Chain (1873TAB (TPE Rubber ) Series)

Plate Top Chain (1873TAB (TPE Rubber ) Series)

Model: 1873TAB-K2000-WB

Plate Material: LF-Blue Roller Material: SUS 304 or Carbon Steel Rubber Material:TPE, hardness: 65±5 supply unit : 1.524 m =5 ft

Product Details

Technical Specifications

ref.No	Roller Mat	width W		Weight	bfl.Radius		Radius
ref.No	Roller Mat	mm	inch	kg/m	mm	inch	mm	inch
S1873TAB-K1200-TPE	steel	304.8	12.00	4.20	150	5.9	610	24.02
S1873TAB-K1600-TPE		406	15.98	5.70	150	5.9	610	24.02
S1873TAB-K2000-TPE		508	20.00	7.12	150	5.9	610	24.02
SS1873TAB-K1200-TPE	stainless steel	304.8	12.00	4.20	150	5.9	610	24.02
SS1873TAB-K1600-TPE		406	15.98	5.70	150	5.9	610	24.02
SS1873TAB-K2000-TPE		508	20.00	7.12	150	5.9	610	24.02
