MPB- Flat top (Flush Grid ) with cleats +side walls
| Standard Width |
| mm | 152.4 | 304.8 | 457.2 | 609.6 | 762 | 914.4 | 1066.8 | 152.4*N |
| inch | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 6*N |
| Nonstandard widths are offered in increments of 16.9mm (0.66'') |
|
Real belt width are in most cases 0.1% to 0.3% wider or less
|
|

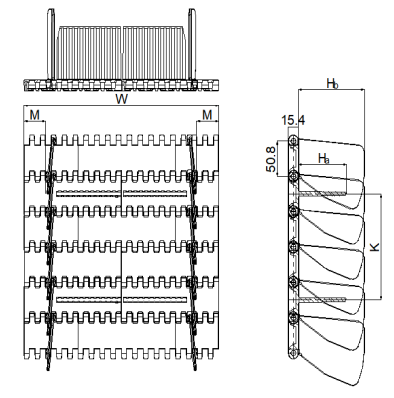

Confirm the size as below :
|
Standard height of cleats : 25mm,50mm,75mm,100mm
Standard height of sidewalls: 25mm,50mm,75mm,100mm
( the height of Hook shape :100mm)
Standard height of sidewalls: 25mm,50mm,75mm,100mm
( the height of Hook shape :100mm)
